Ethernet-Enabled Systems
STM32 with MII/RMII interfaces
Embedded Ethernet solutions using the STM32F207 microcontroller, targeting 100 Mbps wired communication with both MII and RMII PHY interfaces. Complete hardware design and firmware implementation for reliable, production-ready networking.
Project Overview

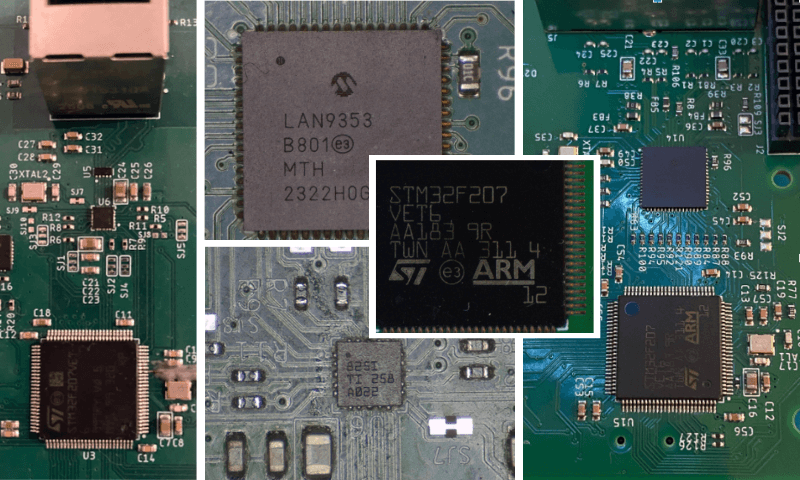

We developed and tested two embedded Ethernet solutions using the STM32F207 microcontroller, targeting 100 Mbps wired communication with both MII and RMII PHY interfaces. These projects demonstrate our capability to design reliable, production-ready Ethernet hardware for industrial and embedded applications.
The first configuration utilizes the MII interface with Microchip's LAN9353, integrating a 3-port managed switch with dual RJ45 connectors. This enables direct routing and communication between devices and the MCU, perfect for applications requiring multiple Ethernet connections.
The second configuration implements the RMII interface with TI's DP83825IR, providing a compact and cost-effective single-PHY solution for simple Ethernet connectivity. Both solutions reflect our experience in designing reliable networking hardware and implementing low-level networking support.
Configuration 1: MII Interface
Microchip LAN9353
3-port managed switch with integrated PHYs.
Dual RJ45 Connectors
Direct routing between devices and MCU.
Managed Switch Features
VLAN support, QoS, and traffic management.
Configuration 2: RMII Interface
TI DP83825IR
Compact single-PHY configuration.
Cost-Effective Design
Optimized for simple Ethernet connectivity.
Low Power Operation
Energy-efficient PHY implementation.
Development Process
- Complete schematic design and PCB layout
- Component selection and optimization
- Board manufacturing coordination
- Firmware development and validation
- Connectivity and throughput testing
Key Features
Implementation Highlights
Hardware Reliability
Industrial-grade components and robust PCB design
Low-Level Networking
Direct PHY control and optimization
Flexible Solutions
Multiple configurations for different use cases
Production Ready
Tested and validated for deployment
