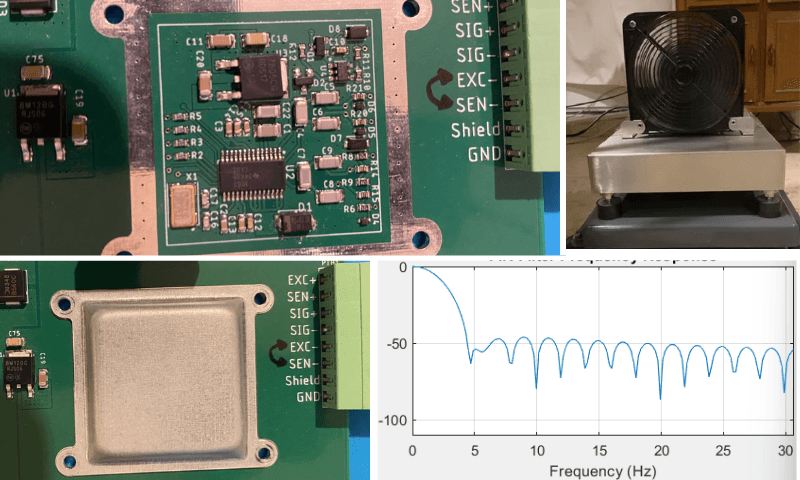

Vibration-Compensated Industrial Scale
Stable measurements in dynamic environments
Industrial-grade weighing system capable of delivering accurate and stable readings in environments with continuous low-frequency vibration, such as inside moving cargo trucks. Advanced signal processing ensures precision despite constant motion.
Project Overview
We developed an industrial-grade weighing system capable of delivering accurate and stable readings in environments with continuous low-frequency vibration, such as inside a moving cargo truck. This system represents a significant advancement in measurement technology for dynamic industrial environments.
The system combines a custom analog front-end for 4-wire load cells with high-resolution ADC technology and sophisticated digital signal processing on an STM32 MCU. Our proprietary algorithms effectively reject vibration-induced noise while maintaining rapid response to actual weight changes.
Validation was performed using a test setup that introduced controlled mechanical vibration via an unbalanced fan mounted on the platform. The resulting filtered signal enabled precise weight readings even under constant excitation, demonstrating high repeatability under real-world perturbations.
System Features
Custom Analog Front-End
Optimized for 4-wire load cell interface with noise rejection.
High-Resolution ADC
Carefully selected and integrated for maximum precision.
Digital Signal Processing
Advanced algorithms on STM32 MCU for vibration rejection.
Mechanical Filtering
Combined mechanical and algorithmic approach for optimal results.
Technical Specifications
Performance Features
- High repeatability under vibration
- Tuned for sub-30 Hz environments
- Real-time weight tracking
- Industrial-grade reliability
Validation & Testing
The system underwent rigorous testing to ensure performance in challenging conditions:
Controlled Vibration Testing
Unbalanced fan setup for consistent mechanical excitation
Signal Analysis
Frequency domain analysis to optimize filter parameters
Real-World Simulation
Testing under conditions mimicking cargo transport
Performance Validation
Demonstrated stable readings under constant perturbation
Industrial Applications
Transportation
Weight monitoring in moving vehicles and cargo trucks
Manufacturing
Process control in vibrating industrial environments
Marine
Shipboard weighing systems with wave compensation
Need Precision Measurement in Challenging Environments?
Let's develop custom measurement solutions that perform where others fail.
