Wireless Vibration Monitoring
Synchronized sensing for predictive maintenance
We designed a wireless sensing system for vibration analysis in industrial environments, enabling predictive maintenance through synchronized, high-resolution data acquisition.
Project Overview
This wireless sensing system enables vibration analysis in industrial environments for predictive maintenance through synchronized, high-resolution data acquisition. The system forms a scalable foundation for real-time monitoring, early fault detection, and multi-channel diagnostics in demanding industrial settings.
A custom protocol ensures precise time synchronization across all nodes, compensating for inter-device clock drift to enable coherent multi-sensor analysis. This allows for advanced diagnostic techniques that require phase-coherent measurements across multiple sensing points.

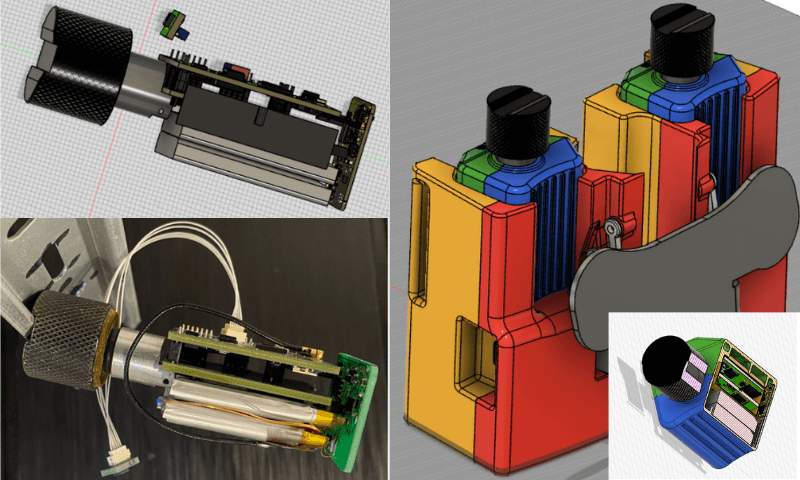

To support field operation, all devices are stored in a charging tray worn on the user's belt, providing mobile power and centralized recharging between sessions. This innovative approach ensures continuous operation in industrial environments where fixed infrastructure may not be available.
Sensor Node Features
High-Performance Accelerometers
Triaxial sensing with 23 kHz bandwidth and 75 μg/√Hz noise density.
Precision Data Acquisition
8-channel, 24-bit Sigma-Delta ADC sampling at 256 sps.
Real-Time Data Streaming
WebSocket-based streaming using the core ESP32.
Environmental Monitoring
Ambient and surface temperature sensing via thermistor and IR sensor.
Technical Specifications
System Capabilities
- Precise time synchronization
- Onboard SD card storage
- Web interface for configuration
- Mobile charging system
Advanced Features
Time Synchronization Protocol
Custom protocol compensates for clock drift between devices
Multi-Channel Analysis
Coherent measurements across multiple sensing points
Field-Ready Design
Belt-worn charging tray for mobile power management
Scalable Architecture
Add nodes as needed for comprehensive coverage
Industrial Applications
Predictive Maintenance
Early detection of bearing failures and mechanical wear
Structural Health
Monitoring of critical infrastructure and machinery
Quality Control
Real-time vibration analysis for production optimization
